36kv Polymer Silicon Rubber Zinc Oxide Lightning Arrester With Indoor High Voltage Switchgear

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xSystem Rated Voltage | 36kV | Rated Frequency | 50Hz |
---|---|---|---|
Inrush Current | 42.5A | Arrester Rated Voltage | 36kV |
DC Reference Voltage | 98kV | Continuous Running Voltage | 75kV |
Square Wave Flow Capacity | 75A | ||
Highlight | Indoor High Voltage Switchgear Lightning Arrester,Polymer Silicon rubber Lightning Arrester,36kv Lightning Arrester |

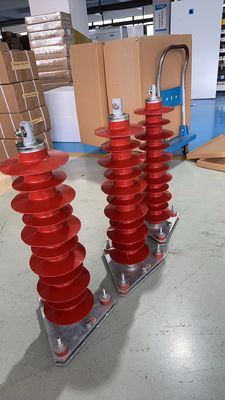

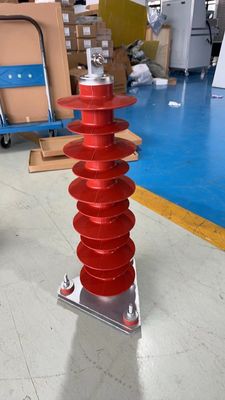

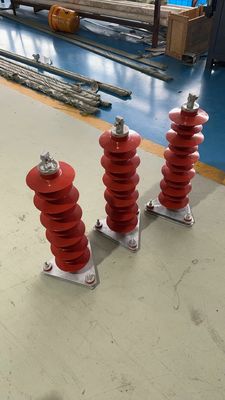

36kv Polymer Silicon rubber Zinc Oxide Lightning Arrester with Indoor High Voltage Switchgear
Small size, light weight, collision resistant, flexible installation .
Special structure, no gap, good sealing, corrosion resistance.
Pollution resistance, stable performance , best of creepage distance , aunti-fouling .
The switch room consists of various functional circuits(including grounding switches and load switches) sealed in the metal casing and busbar between them. The shell is made of 3-inch cold rolled steel plate(or unembroidered steel plate) welded. Each functional loop includes a load switch and a grounding switch. The load switch is composed of a vertical moving contact system and a static contact at the lower end. When the switch is closed, the contact moves downward and the load switch is connected. The ground switch is composed of a moving contact knife and a static contact knife. The upper and rear of the switch room are provided with 4 rectangular assemblers, and the front of the loop cabinet is provided with observation Windows. An explosion-proof device is installed at the rear of the ring cabinet.
Zinc Oxide Arrester HY5WS-17/50(3 pcs/set)
避雷器型号 | 系统额 定电压 |
避雷器 额定电压 |
持续运 行电压 |
直流参 考电压(U1mA) |
陡波冲击 电流下残压 |
雷电冲击 电流下残压 |
操作冲击 电流下残压 |
方波通流 容量(2ms) |
大电流冲 击耐受 |
图号 |
kV(r.m.s) | ≮kV | ≯kV | A | kA | ||||||
HY5WS-3.8/15* | ||||||||||
3 | 3.8 | 2.0 | 7.5 | 7.3 | 15 | 12.8 | 75 | 40 | 图2 | |
HY5WS-5/15 | 5 | 4.0 | 8.0 | 17.3 | 15 | 12.8 | 100 | 65 | ||
HY5WS-7.6/30* | 6 | 7.6 | 4.0 | 15.0 | 34.5 | 30 | 25.5 | 75 | 40 | 图3 |
HY5WS-10/30 | 10 | 8.0 | 15.0 | 34.5 | 30 | 25.5 | 100 | 65 | ||
HY5WS-12.7/50* | 10 | 12.7 | 6.6 | 25.0 | 57.5 | 50.0 | 38.5 | 75 | 40 | 图4 |
HY5WS-17/50 | 17 | 13.6 | 25.0 | 57.5 | 50.0 | 38.5 | 100 | 65 | ||
注:“*”者旧版标准型号 |
We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .
