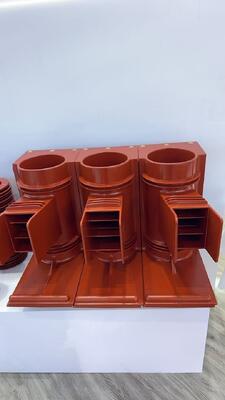

40.5kV High Voltage Epoxy Resin Insulator Shield Spout Bushings 660mm Height

Place of Origin WENZHOU
Brand Name QIUPU
Certification IEC
Model Number CTH3-40.5kV
Minimum Order Quantity 6
Packaging Details Cartons
Delivery Time 7 Days
Payment Terms T/T, Western Union
Supply Ability 5000 PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Red Material Casting Resin
Rate Voltage 40.5kV Frequency Voltage 100 KV
Creepage Distance 810mm Flexural Strength 10 KN
Current 630A-3150A Higth 660MM
High Light

high voltage bushing

,

high voltage post insulators

Leave a Message
Product Description

CTH3-40.5 660MM 40.5kV Epoxy Resin Shield Spolt Bushings With KYN61 Switchgear



Description







1. We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .



2. The APG process includes three processes: pre-mixing, automatic pressure gel, and solidification after molding.



3. Compared with the permanent magnetic type, which is mainly the control and operation mechanism, the fixed seal type is the projectile type, and the permanent magnetic type is the controller) The whole cabinet is called the armor type moving medium metal closure switch equipment, which is divided into three layers, the upper layer is the bus and the instrument panel(separate), the middle layer is the circuit breaker room and the lower layer is the cable room. Because the circuit breaker has been in the middle, so called the armor type to move the type of metal closure switch equipment, short for the cabinet. (2) The central cabinet is a type of switchgear used by end users. It is fully functional and large in size, while the ring cabinet is a type of switchgear used to connect two power sources or parts of a ring network. The main function is to divide the two sections into two parts. There are many kinds of lockers, which can be divided into the switchboard, the measuring cabinet, the transformer cabinet, the change cabinet used, and so on. The switch in the cabinet may be equipped with an automatic protection device.



Item Name Rated voltage (KV) Rated frequency(Hz) Frequency withstand voltage 5 min (KV) Local discharge (pc) Creep distance (mm) Dispute bend (kN) Lighting impulse withstand voltage (KV)
1 Insulators(140*320) 40.5 50 98 ≤10 >810 ≥10 185
2
3 Contactor box (1250A) 12 50 45 ≤10 >240 ≥8 80
4 Contactor box (1600A) 12 50 45 ≤10 >240 ≥8 80
