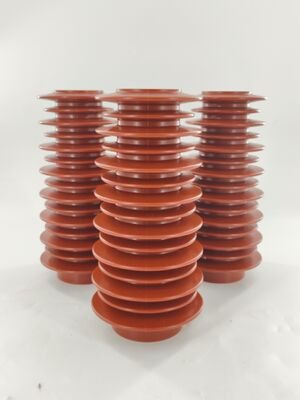

Medium Voltage Casting Resin Support insulator with Indoor Switch Cabinets
Product Details
| Color | Red | Material | Casting Resin |
|---|---|---|---|
| Rate Voltage | 36kV | Frequency Voltage | 100 KV |
| Creepage Distance | 810mm | Flexural Strength | 8 KN |
| Dia | 140mm | Higth | 390mm |
Product Description
Medium Voltage Casting Resin Support insulator with Indoor Switch Cabinets
| Item | Name | Rated voltage (KV) | Rated frequency(Hz) | Frequency withstand voltage 5 min (KV) | Local discharge (pc) | Creep distance (mm) | Dispute bend (kN) | Lighting impulse withstand voltage (KV) |
| 1 | Insulators(140*390) | 40.5 | 50 | 98 | ≤10 | ＞810 | ≥10 | 185 |
| 2 | Reactance Insulators(140*390) | 40.5 | 50 | 98 | ≤10 | ＞810 | ≥10 | 185 |
| 3 | Contactor box (1250A) | 12 | 50 | 45 | ≤10 | ＞240 | ≥8 | 80 |
| 4 | Contactor box (1600A) | 12 | 50 | 45 | ≤10 | ＞240 | ≥8 | 80 |
| 5 | Wall bushing (260*395) | 40.5 | 50 | 98 | ≤10 | ≥840 | ≥10 | 185 |
Epoxy resin pressure gel molding machine APG equipment factory produced by the epoxy resin molding machine good functioning, low noise, electricity consumption
Epoxy resin molding machine is a special pressure gel equipment which produces the product of the finished edge, casing, contact box, Transformer, etc.
The following models are available: epoxy resin molding machine 868-V, heating plate 800 x 650mm, epoxy resin molding machine 888-V, heating plate 800 x 800mm, epoxy resin molding machine 10108-V heating plate 1000 X 1000mm, epoxy resin molding machine 858-2V heating plate 800 x 500MM, epoxy resin molding machine is our factory through many years of practical experience and improved design, and the pressure of epoxy resin molding machine has been verified by customers for many years To date, a complete series of epoxy pressure molding machines have been developedTo date, a complete series has been developed. The pressure molding machine of epoxy resin adopts PTL C, which is more humane, and has the following characteristics in comparison with the domestic products:
