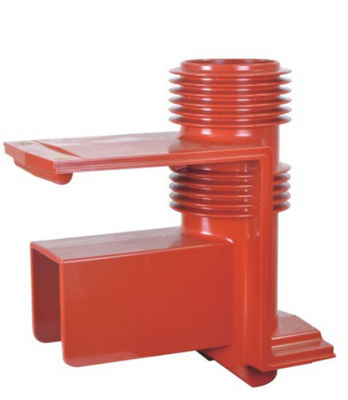

Indoor Installation Epoxy Resin Bushing , High Voltage Post Insulators 40.5kV
| Place of Origin | WENZHOU |
|---|---|
| Brand Name | QIUPU |
| Certification | IEC |
| Model Number | KYN61-40.5 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiable |
| Packaging Details | Cartons |
| Delivery Time | 7 Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 5000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Epoxy Resin Bushing | Color | Red Or Customized |
|---|---|---|---|
| Installation | Indoor Installation | Frequency Voltage | 100kV |
| Current | 630A-4000A | Flexural Strength | 10 KN |
| Creppage Distance | 810mm | ||
| High Light | high voltage bushing,high voltage post insulators,OEM Epoxy Resin Bushing |
||
Product Description
Indoor Installation Epoxy Resin Bushing , High Voltage Post Insulators 40.5kV
Our Advantage
1. OEM are welcome
2. High quality & timely delivery
3. Reasonable price
4. In a variety of designs and Specification
Description
Especially applied to vacuum circuit breaker sealing pole column, complex, thin wall, multi-directional core extraction products are more advantageous.
The use of the cabinet is mainly 10KV system electrical distribution room, circuit breaker and metering unit can be removed, for handcart type structure, line and feed protection is more complete, rated current is 630 ~ 3150A; (1) The use of the cabinet is mainly 10KV system power distribution room, circuit breaker and metering unit can be removed, for the handcart structure, the line and feed protection is more complete, the rated current is generally 630 ~ 3150A, the ring network cabinet is generally used in the medium pressure secondary distribution or box change, the advantage is a fixed structure small volume, most of the vacuum or 6 gas insulation, but the rated 12 circuit breaker is less than the use of the general maintenance of the load, there is gas production of the switch
| Item | Name | Rated voltage (KV) | Rated frequency(Hz) | Frequency withstand voltage 5 min (KV) | Local discharge (pc) | Creep distance (mm) | Dispute bend (kN) | Lighting impulse withstand voltage (KV) |
| 1 | ||||||||
| 3 | Contactor box (1250A) | 12 | 50 | 45 | ≤10 | ＞240 | ≥8 | 80 |
| 4 | Contactor box (1600A) | 12 | 50 | 45 | ≤10 | ＞240 | ≥8 | 80 |
| 5 |
We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .
.
